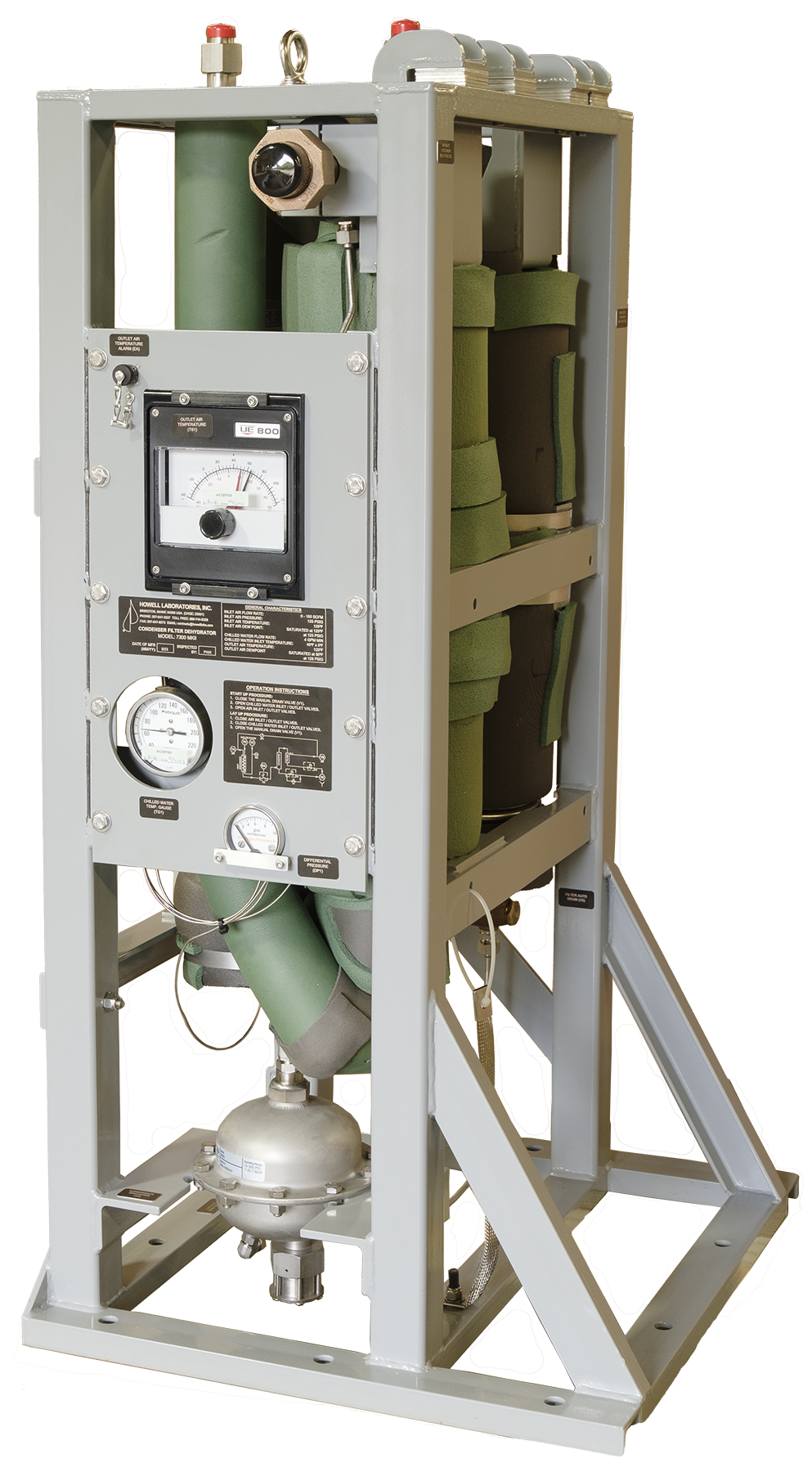

Condenser-Filter Low-Pressure Dry Air 7300 Mk II

Selected for the LHD 2-4 class, the Model 7300 Mk II low-pressure air dehydrator (LPAD) is designed to remove water vapor from low-pressure compressed air systems. The air delivered by this dehydrator is intended for use in control systems such as automatic combustion control, or in any low-pressure air system where it is desirable to eliminate moisture. Generally, the air delivered by this dehydrator is NOT of a quality adequate for use in electronics purging.

Moisture removal is achieved by cooling the air stream with the ship’s chilled water. The cooled air releases moisture by condensation. The condensate is mechanically separated from the air stream and drained to the LPAD’s trap-dump valve.

Features:

  • Remote alarm capability (dry-contact)
  • Differential pressure indicator
  • Autodrain

$0.00

SKU: 7300-mk2

Description

Selected for the LHD 2-4 class, the Model 7300 Mk II low-pressure air dehydrator (LPAD) is designed to remove water vapor from low-pressure compressed air systems. The air delivered by this dehydrator is intended for use in control systems such as automatic combustion control, or in any low-pressure air system where it is desirable to eliminate moisture. Generally, the air delivered by this dehydrator is NOT of a quality adequate for use in electronics purging.

Moisture removal is achieved by cooling the air stream with the ship’s chilled water. The cooled air releases moisture by condensation. The condensate is mechanically separated from the air stream and drained to the LPAD’s trap-dump valve.

Features:

  • Remote alarm capability (dry-contact)
  • Differential pressure indicator
  • Autodrain

Reviews

There are no reviews yet.

Be the first to review “Condenser-Filter Low-Pressure Dry Air 7300 Mk II”

This site uses Akismet to reduce spam. Learn how your comment data is processed.

Related products

  • Model 5295 Condenser-Filter Air Dehydrators

    $0.00

    Operation is completely automatic. Simple, robust design and low maintenance requirements ensure minimum life cycle cost of ownership. Configurations providing different fittings and instrumentation suites are available to satisfy various class requirements:

    • 200 scfm dry air at 35° F dew point.
    • Maximum of reliability and minimum of maintenance expense.
    • Ideal for replacing CFC-based refrigerated dehydrators for shipboard service
    • ICAS instrumentation and communication (Mark II)
    View Specs

  • Model 7300 Mk I Condenser-Filter Air Dehydrator

    $0.00

    Selected for the DDG 1000 class, the Model 7300 Mk I dehydrator is designed to remove water from low-pressure compressed air systems. The air delivered by this dehydrator is intended for use in control systems such as automatic combustion control, or in any low-pressure air system where it is desirable to eliminate moisture. Generally, the air delivered by this dehydrator is NOT of a quality adequate for use in electronics purging.

    • Air for shipboard control systems.
    • Uses ship’s chilled water to dry the air.
    • Monitoring via Siemens PLC and Profibus DP.
    View Specs

  • Model 7301 Mk I Condenser-Filter Air Dehydrator

    $0.00

    A convenient, economical replacement for the R12-cooled refrigerant dehydrator originally furnished with the Dresser-Rand NAXI® LPAC on CG-47 and FFG-7 classes. Its foundation footprint is an exact duplicate of the refrigi-filter, for trouble-free retrofit. Uses the same rugged, maintenance-free chilled-water-to-air heat exchanger used in Howell Labs’s other condenser-filters. Basic instrumentation is standard. Requires no electrical power for its operation.

    • Drop-in replacement for existing NAXI® LPAC refrigeration dehydrator.
    • To 100 scfm dry air flow.
    View Specs
Product Specs
Downloads

Specifications:

Designed in compliance with American Bureau of Shipping Naval Vessel Rules, 15 July 2004 Edition and to comply with all applicable Navy shock, vibration, E3, and EMI requirements.

Pressure (Inlet Air): 125 psig (860 kPa) maximum
Temperature (Inlet Air): 125° F (52° C) maximum*
Humidity (Inlet Air): 125° F (52° C) maximum pressure dew point*
Flow (Inlet Air): 100 scfm (3 nm3) maximum)
Inlet water: 4 gpm (15.2 l/min) minimum at 45° F (7.2° C) maximum
Outlet air specifications: Pressure drop, inlet to outlet: 5 psig (34 kPa) maximum Moisture content 50° F (10° C) pressure dew point
Particle filtration (Outlet Air): to 1 micron
Coalescing filtration (Outlet Air): 0.01 micron
Oil Vapor Content (Outlet Air): 5 ppm maximum
Power Requirements: None
Dimensions: 24 in (61 cm) W x 22-1/4 in (56.5 cm) deep x 46-13/32 in (118 cm) high
Weight: 226 lb (103 kg) estimated

*For higher inlet air temperature and moisture conditions, consult Howell Laboratories, Inc

Available Options (please contact factory):

  • Transition plate for Hankison Model A-100 CNS
