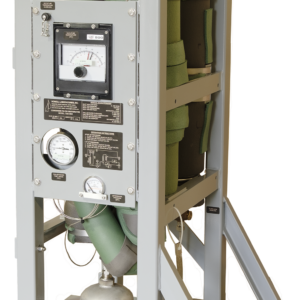

Model 5295 Condenser-Filter Air Dehydrators

Operation is completely automatic. Simple, robust design and low maintenance requirements ensure minimum life cycle cost of ownership. Configurations providing different fittings and instrumentation suites are available to satisfy various class requirements:

  • 200 scfm dry air at 35° F dew point.
  • Maximum of reliability and minimum of maintenance expense.
  • Ideal for replacing CFC-based refrigerated dehydrators for shipboard service
  • ICAS instrumentation and communication (Mark II)

$0.00

SKU: 5295

Description

Operation is completely automatic. Simple, robust design and low maintenance requirements ensure minimum life cycle cost of ownership. Configurations providing different fittings and instrumentation suites are available to satisfy various class requirements:

  • 200 scfm dry air at 35° F dew point.
  • Maximum of reliability and minimum of maintenance expense.
  • Ideal for replacing CFC-based refrigerated dehydrators for shipboard service
  • ICAS instrumentation and communication (Mark II)

Reviews

There are no reviews yet.

Be the first to review “Model 5295 Condenser-Filter Air Dehydrators”

Your email address will not be published. Required fields are marked *

Product Specs
Parts List
Downloads

Specifications:

Built to Military Specification MIL-D-24693, dated 23 November 1987, “Dehydrator, Condenser-Filter, Low-Pressure Air,” Class 2, 200 scfm. Fully qualified to Military Specification MIL-S-901C, High Impact Shock (Grade A), and Military Standard MIL-STD-167, Vibration (Environmental) Shipboard.

Air Capacity: 200 scfm saturated air at 125° F, 80 psig.
Pressure: Normally operates at 80 to 150 psig; designed at 150 psig and proofed at 225 psig.
Outlet Air Conditions: Pressure not more than 5 psig below inlet. Dew point within 4° F of inlet water temperature.
Electrical Requirements: 115 VAC, 60 Hz, single-phase, 5 amperes.
Chilled Water: 4 gpm, 10-155 psig, 45° F nominal.
Dimensions: 30″W x 24″D x 56″H
Weight: 526 pounds

Mark Distinctions:

5295 Mk I 5295 Mk IA 5295 Mk II 5295 Mk III 5295 Mk IV 5295 Mk V 5295 Mk VI
Top drawing no. 5295-G501 5295-G502 6115-G501 6438-G501 6638-G501 6656-G501 6800-G501
Tech. manual no. S9514-DJ-MMA-01C S9514-DJ-MMA-01C S9514-DJ-MMA-01C not applicable S9514-E7-MMM-010 S9551-CB-MMA-010 S9514-FD-MMD-010
Electrical schematic diagram: 6654 6654 6198 6198 6640 6654 6640
Indicators: Air & water pressure gauges; water temperature gauges. Air & water pressure gauges; water temperature gauges. Air & water pressure gauges; water temperature gauges. Air & water pressure gauges; water temperature gauges. Air pressure gauge; water temperature gauges. Air & water pressure gauges; water temperature gauges. Air pressure gauge; water temperature gauges.
Interfaces: MIL-F-1183 bronze unions. MIL-F-1183 bronze unions. MIL-F-1183 bronze unions. MIL-F-1183 bronze unions. MIL-F-1183 bronze unions. MIL-F-1183-equivalent stainless unions. Socket-welded stainless steel fittings.
Other: Alarm time-delay override switch. Remote alarm connection normally-closed. Alarm time-delay override switch. Remote alarm connection normally-closed. ICAS instrumentation. Alarm time-delay override switch. Remote alarm connection normally-open. Alarm time-delay override switch. Remote alarm connection normally-open. Remote alarm connection normally-open. Alarm time-delay override switch. Remote alarm connection normally-open. Remote alarm connection normally-open.
APL: 440300055 440300059 440300050 481570031A 440300060 440300058B

Applications:

  • Originally designed for: DDG-51 class AEGIS destroyers.
  • Installed on: CVN-65, DD-963, LHA-1, LHD-1, LSD-49, LCC-19, AOE-6, AS-39 and T-AE-26 classes.
  • Retrofitted on: Classes pursuant to formal SARs: AGF-3 5086D, LSD-36 551D, LSD-41 1241D, AOE-1 803D, and LPD-4 1183D classes.
  • Specified for recent new construction on: LHD-1 and LSD-49 classes.
